Excessive timber to break down, you will want to to do so as quickly and easily as possible. Mounting a cone splitter on your excavator, telehandler or crane allows for the ability to split wood with speed and precision.

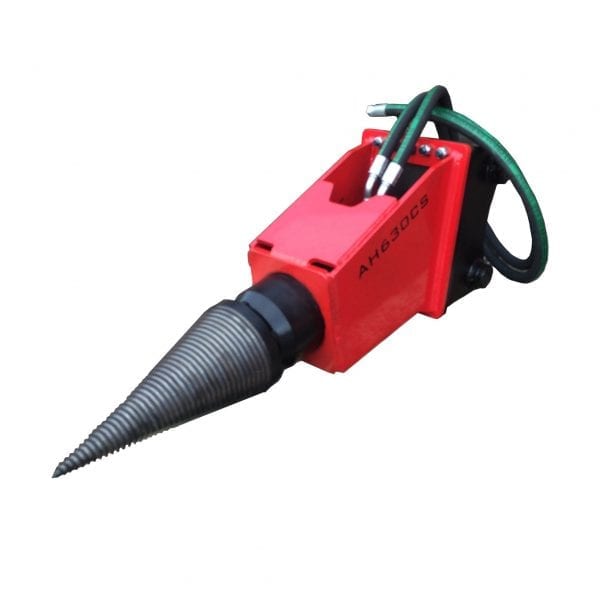

APPROVED HYDRAULICS CONE SPLITTER – AH630CS
Ideal and compact method of splitting down both good timber and difficult timber such as roots.
Can be fitted to range of machines that can access timber such as excavators, backhoes, tele-handlers and some heavy duty cranes.
Specification
- Excavators: 3-7T
- Weight: 170Kg (excluding hitch)
- Cone: 200 Diameter x 400 long with removable hardened tip
- Hydraulic Motor: Max torque 2338 N/m
- Max Log Size (typical): 2m long x 1.1m diameter

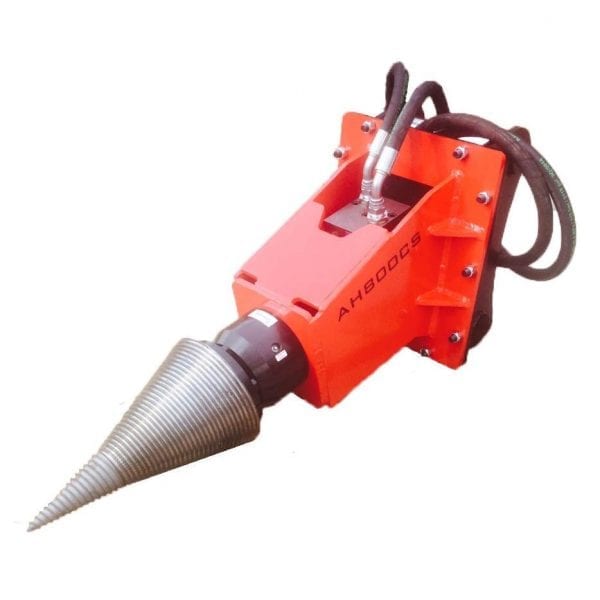

APPROVED HYDRAULICS CONE SPLITTER – AH800CS
Ideal and compact method of splitting down both good timber and difficult timber such as roots.
Can be fitted to range of machines that can access timber such as excavators, backhoes, tele-handlers and some heavy duty cranes.
Specification
- Excavators: 8-16T
- Weight: 185Kg (excluding hitch)
- Cone: 250 Dia x 400 long with removable hardened tip
- Hydraulic Motor: Max torque 2475 N/m
- Max Log Size (typical): 3m long x 1.3m dia
- Includes hitch & hoses

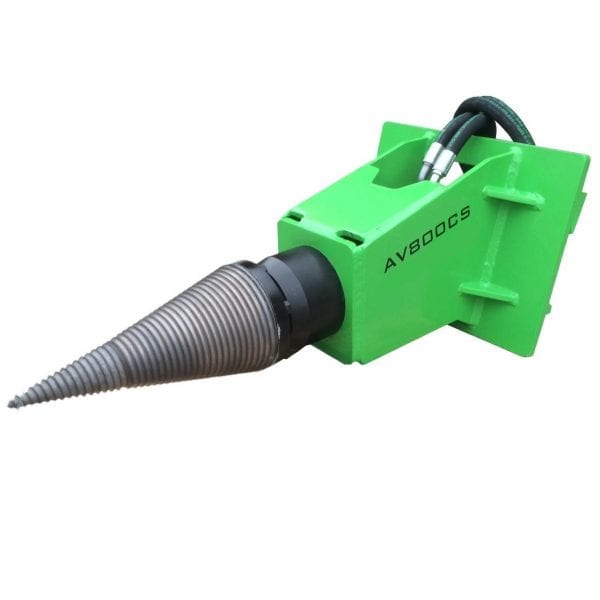

APPROVED HYDRAULICS CONE SPLITTER – AV800CS
Ideal and compact method of splitting down both good timber and difficult timber such as roots.
Manufactured specifically for Avant Loaders.
Specification
- Avant Loader Specification
- Weight: 185Kg (excluding hitch)
- Cone: 250 Dia x 400 long with removable hardened tip
- Hydraulic Motor: Max torque 2475 N/m
- Max Log Size (typical): 3m long x 1.3m dia
- Includes hitch & hoses
