Starters

Product card

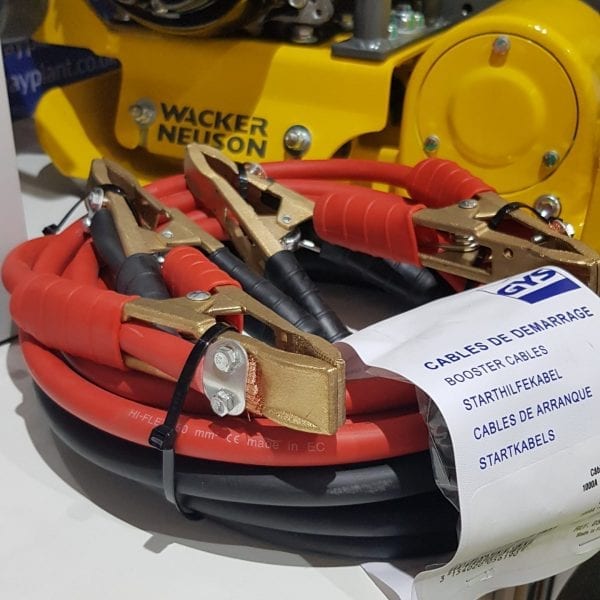

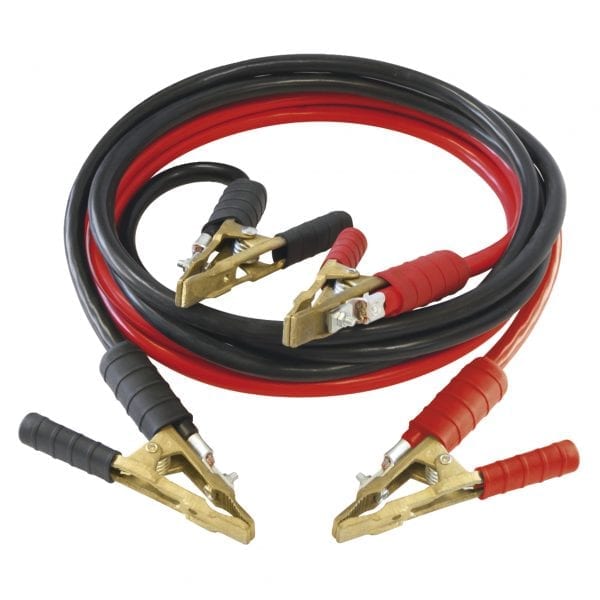

• 4.5m long jump cables
• 1000a
• 100% copper cable
• 056190 1000A 4.5m 50mm² (100% Cu)

Product Card

*Batteries not included*

ENERGY STATION is a multi-function mobile unit:
 Self contained charger 12 or 24V for cars, vans, trucks and onsite work vehicles.
 Automatic charger 2 x 12 Volts
 Charging can be carried out without supervision:
– Compatible with 12V or 24V, gel or liquid external batteries
from 35 to 225 Ah.

SELF CONTAINED STARTER 12V AND 24V

To fit with one or two batteries (not provided) from 120 to 170 Ah.
ENERGY STATION is a multi-function mobile unit:
 Self contained charger 12 or 24V for cars, vans, trucks and onsite work vehicles.
 Automatic charger 2 x 12 Volts
 Charging can be carried out without supervision:
– Compatible with 12V or 24V, gel or liquid external batteries
from 35 to 225 Ah
 Starting power : dependent upon the chosen battery
capacity.
Energy Station is designed to start cars, vans up to
on-site work vehicles and buses.
 To maximize the life of the internal batteries, charge and keep the Energy Station charged after each use
 Trolley delivered in a kit requiring some assembly.
 The Energy Station trolley is equipped with 4 puncture proof wheels, with 2 for steering for excellent mobility.
 Integrated tester to check the charge condition of the
internal batteries

MULTI CHARGES UNIT 12V OR 24V

Space saving set of 2 12V chargers with 3 charging outputs:
 2 independent outputs: 1 for each trolley batteries
 1 output for the external batteries (12 or 24V).
 Fully and automatically charge without supervision even highly
discharged batteries (Floating system – WuoU curve)
 Charge all types of batteries 12V or 24V with liquid or
gel electrolyte from 35 to 225 Ah.
 Polarities reversal protections for the charge of the external
batteries

 To maximize the life of the internal batteries, charge and keep the Energy Station charged after each use
 Trolley delivered in a kit requiring some assembly.
 The Energy Station trolley is equipped with 4 puncture proof wheels, with 2 for steering for excellent mobility.

Product Card

Professional autonomous starter with integrated
charger for starting all vehicles equipped with
12 V batteries.

A HIGH-PERFORMANCE STAND-ALONE STARTER

Equipped with a «high performance» lead battery
(in start-up: 830A at 1V/c and 3100A at battery peak),
the Gyspack PRO 900 is ideal for starting up light vehicles, vans,
tractors and trucks.

IDEAL FOR ON SITE BREAKDOWNS AND RECOVERY CALL OUTS

With its small size and 15kg weight, it is easily
transportable on site and without effort.
1.80 m of cables for optimal user comfort.

FOR SAFE USE

Protection against polarities inversion thanks to an
audible warning device and an indicator light.
Equipped with a fuse to protect your carries
overvoltages or short circuits and avoid sparks when
connecting the clamps.
Equipped with a 300 A fuse protecting the system by
case of misuse.

COMPLETE UNSUPERVISED CHARGING

Thanks to its integrated automatic charger (6 A – curve
7-step intelligent charging), the Gyspack PRO 900 recharges
100% from the mains, unattended, even when permanently
connected.
Visualization of the state of charge thanks to three LEDs.

MEMORY BACKUP FUNCTION

1 cigarette lighter socket for holding or saving
vehicle memories (15 A fuse) when changing batteries.

A PROTECTED COVER

The GYSPACK PRO 900 is equipped with corner pads. They
protect the cover from impacts when working in demanding
environments (on site or in the workshop).

Product Card

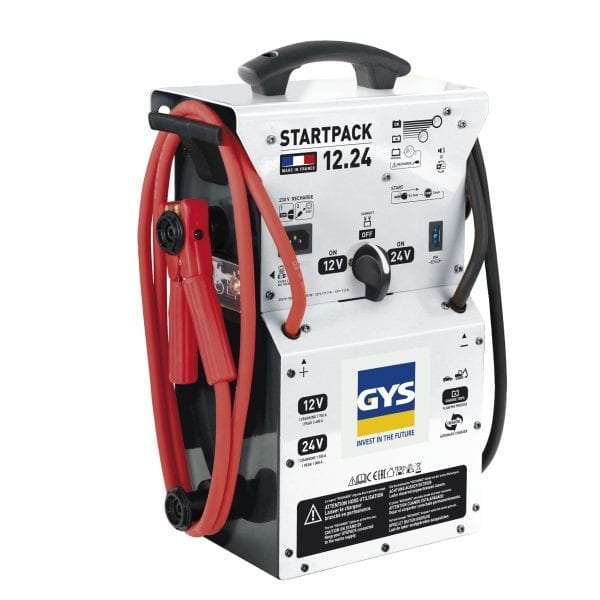

With its 2 « high performance » internal lead-acid
batteries, the Startpack 12-24 delivers an exceptional
power on 12V or 24V. This booster pack is designed to start
trucks, vans and commercial vehicles.

IDEAL FOR ON SITE BREAKDOWNS AND RECOVERY CALL OUTS

Compact with a weight/power ratio really
comfortable, the Startpack 12-24 is perfectly suitable
for any on site breakdowns and recovery call outs.

QUICK AND UNSUPERVISED CHARGE

Plugged into the mains supply its automatic integrated
charger (WU0
U curve) will charge the Startpack 12-24’s
internal batteries up to 100% , in few hours without
supervision.

DESIGNED FOR A MAXIMUM SECURED USE

The Startpack 12.24 features protection for your on-board
electronics, the charger, the battery and the operator.
Switch OFF:
– Protection for the on-board electronics.
– Prevention of short circuit and overload.
– Warning against reversal polarity (with buzzer lights).
– No sparks when the clamps are connected to the
terminals.
20A fuse: protects the charger against power supply
disturbances.

Download Product Card

*Wheel kit/trolley included*

The STARTPACK PRO 12-24 is designed for professional heavy-duty use: its two
integrated high performance «Hawker lead batteries» deliver exceptional power on
12V or 24V, to start a wide range of vehicles including trucks and buses.

IDEAL FOR ON SITE BREAKDOWNS AND RECOVERY CALL OUTS.
With its small size and its trolley, the STARTPACK PRO 12-24 is perfectly suitable for
any on-site intervention.

QUICK AND UNSUPERVISED CHARGE
Its powerful automatic integrated battery charger (7A – WUoU charging curve), will
recharge the STARTPACK PRO 12-24’s internal batteries up to 100% in only a few
hours and without supervision.

DESIGNED FOR MAXIMUM SAFETY
The product features protection for your on-board electronics, the charger, the battery
and the operator
• Safety cut off switch (200A fuse):
– Protection for on-board electronics. .
– Prevention of short-circuit and overload.
– Warning against polarity reversal (with buzzer lights)
– No sparks when connecting the clamps to the battery terminals.
• Fusible 20A : Protects the charger against power supply fluctuations.

Product Card

SMART STARTER MANAGEMENT SYSTEM

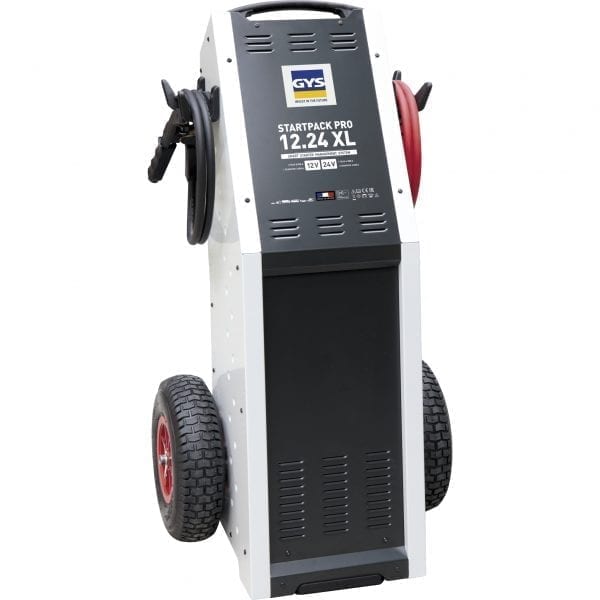

STARTPACK PRO 12.24 XL is an extremely powerful booster pack designed
for heavy duty commercial use. In addition to exceptional power this unit is
equipped with a highly sophisticated protection system making it the most
advanced booster pack of its type on the market.

EXCEPTIONAL BOOST POWER IN 12V AND 24V

Fitted with 2 x 50Ah Exide Spiral AGM internal batteries that can be used in any position,
STARTPACK PRO 12.24 XL will deliver a very high starting current, up to 8500A peak.
It is suitable for use on vehicles with AGM, EFB, gel, liquid batteries etc.
Completely automated, it will only supply power when the vehicle ignition is turned on.
No switching on the machine is required.
Unique on the market, the 12.24 XL is specifically designed to deliver a starting current
based on the battery’s specific features, including for instance those requiring a very long
warm-up time (helicopters, bio-gas buses, etc.). It can hold the supply of the boost for an
adjustable time of up to 120 s in normal mode (300 s in SOS mode), in order to detect the
optimal moment to deliver all its power instantaneously.

IDEAL FOR SITE WORK

Designed to be heavily used, the unit is shock resistant and can be used in adverse
weather.
The heavy duty wheels and handle assist with operation in demanding locations
STARTPACK PRO 12.24 XL is particularly recommended for the following applications:
recovery vehicles, truck repair centres, commercial vehicle operators, agricultural
maintenance workshops, bus or construction vehicles depots etc.

COMPLETE SAFETY MANAGEMENT

SMART STARTER MANAGEMENT SYSTEM

When using a traditional booster pack, there is little control over how much power is supplied to the
battery in the vehicle and for how long, normally only via a basic control switch. Also, the operator has
to manually select the correct voltage. When using the STARTPACK PRO 12.24 XL, the machine will
automatically supply the exact power required. It will also prevent the operator from jump starting a
vehicle where the battery is faulty or there is a short-circuit at the clamps or voltage selection error. This
will protect the electronics in the vehicle, the user and maximise the lifetime of the internal batteries.

HIGH PERFORMANCE INTERNAL BATTER CHARGER

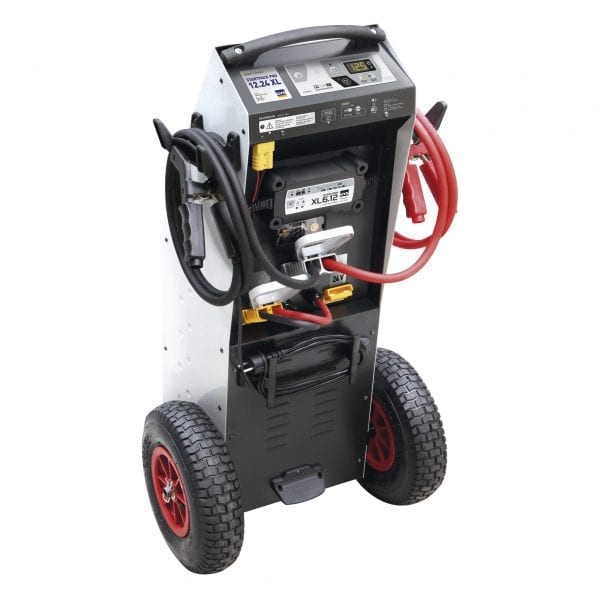

STARTPACK PRO 12.24 XL is supplied with a 6A GYSFLASH
6.12 XL battery charger that will completely recharge the
internal batteries in a few hours.
The charger follows an advanced 8 step charging curve to
keep the internal batteries in the best condition.
The charger is compact, light, waterproof and detachable.
