GENERAC Lighting Tower – V20 Y2 Yanmar (4 x 320W LED)

£10,700.00 Exc VAT

PRODUCT CARD

Minimum dimensions (L x W x H) 2200 x 1400 x 2440 mm
Maximum dimensions (L x W x H) 2200 x 1850 x 8500 mm
Dry weight 980 kg
Lifting system Hydraulic
Mast rotation 340°
Lamps power 4 x 320 W
Lamps type LED
Total lumen 167300 Lm
Illuminated area 4500 m2
Engine Perkins 402D-05G
Engine cooling Liquid
Cylinders (q.ty) 2
Engine speed (50/60 Hz) 1500 / 1800 rpm
Liquid containment (110%)
Alternator (kVA/V/Hz) 5/220/50 – 5/240/60
Outlet socket (kVA/V/Hz) 2/220/50 – 2/240/60
Inlet plug (A/V/Hz) 16/220/50 – 16/240/60
Avg. sound pressure 59 dB(A) @ 7m
Wind speed resistance 110 km/h
Tank capacity 100 l
Running time 143 h

Optional Extra’s – Price on request

  • 50mm Ball hitch type
  • Additional spare tyre with support
  • Earth picket with 5m cable
  • 110v outlet (V20 Models Only)
  • Certified spark arrestor (V20 Models only)
  • Shut down valve – 2/3 Cylinder Engines
  • Shut down valve – 1 cylinder Engine (IQ20)
  • Trackunit – Telemetry
  • Hot dip zinc coating of mast sections (min. 5 pieces)
Description

Description

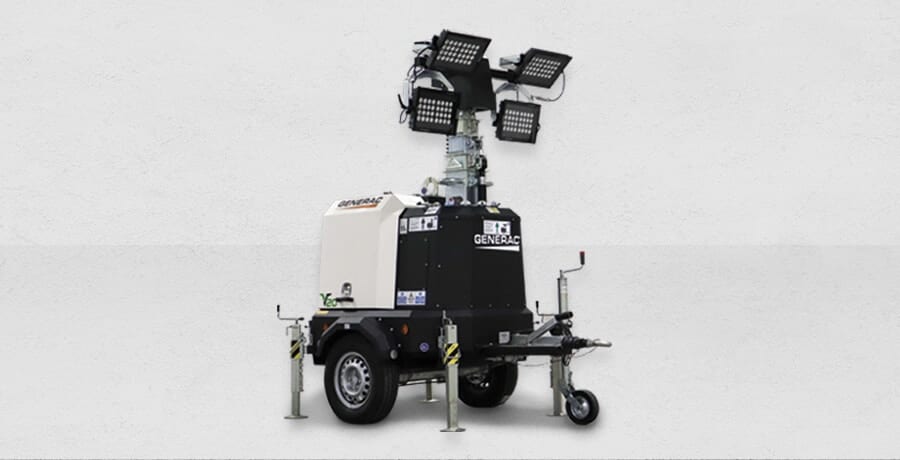

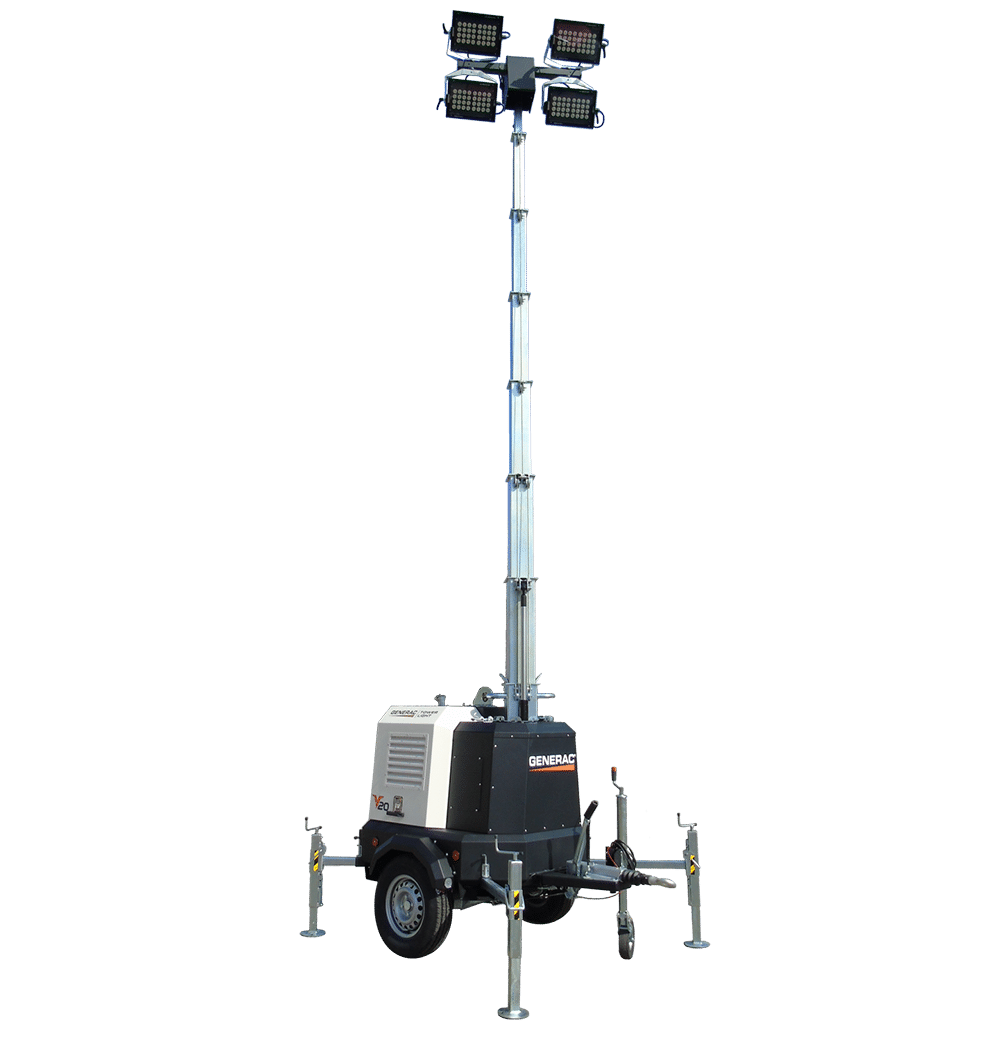

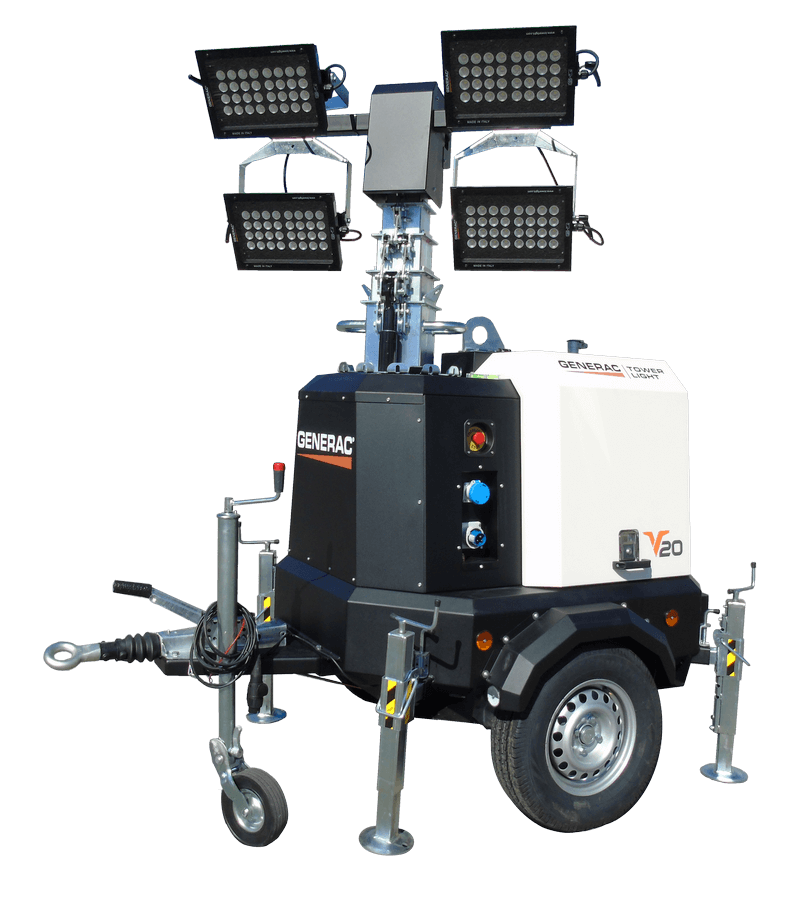

The V20 light tower is a brand-new mobile light tower equipped with 4x320W high efficiency LED lamp floodlights. More than 160 hours of running time and one of the lowest sound pressure level in the industry: only 58 dB(A) at 7 meters.

GTL01 digital controller
The V20 is equipped with a GTL01 digital controller specifically studied to manage every function of the light tower for the best ease of use.

Generac LED lamps
4 x 320W high efficiency LED floodlights designed by Generac Mobile®.

Low voltage LED
The floodlights are powered with low voltage 48 Volts. No more high voltages on external cables. Safety as a must!

Top accessibility
3 doors for a wider access. 2 compass-top doors with «wing» shape provide a complete access to the engine for a safe and convenient maintenance. 1 back door allows the access to the digital control panel.

RLS – Rapid Locking Stabilizers
The special shape of the adjustable stabilizers allows the operator to level the V20 light tower in few seconds.

The lowest noise level!
Innovation means also decreasing the noise level! The V20 light tower emits only 58 dB(A) @ 7 meters.

Long running time
Thanks to the V20’s fuel saving features such as the small engine and the LED lamps, this model can run up to 167 hours without refueling.

Double power
You can connect a V20 to another V20 and run two lighting towers with only one engine.
