£3,350.00 Exc VAT

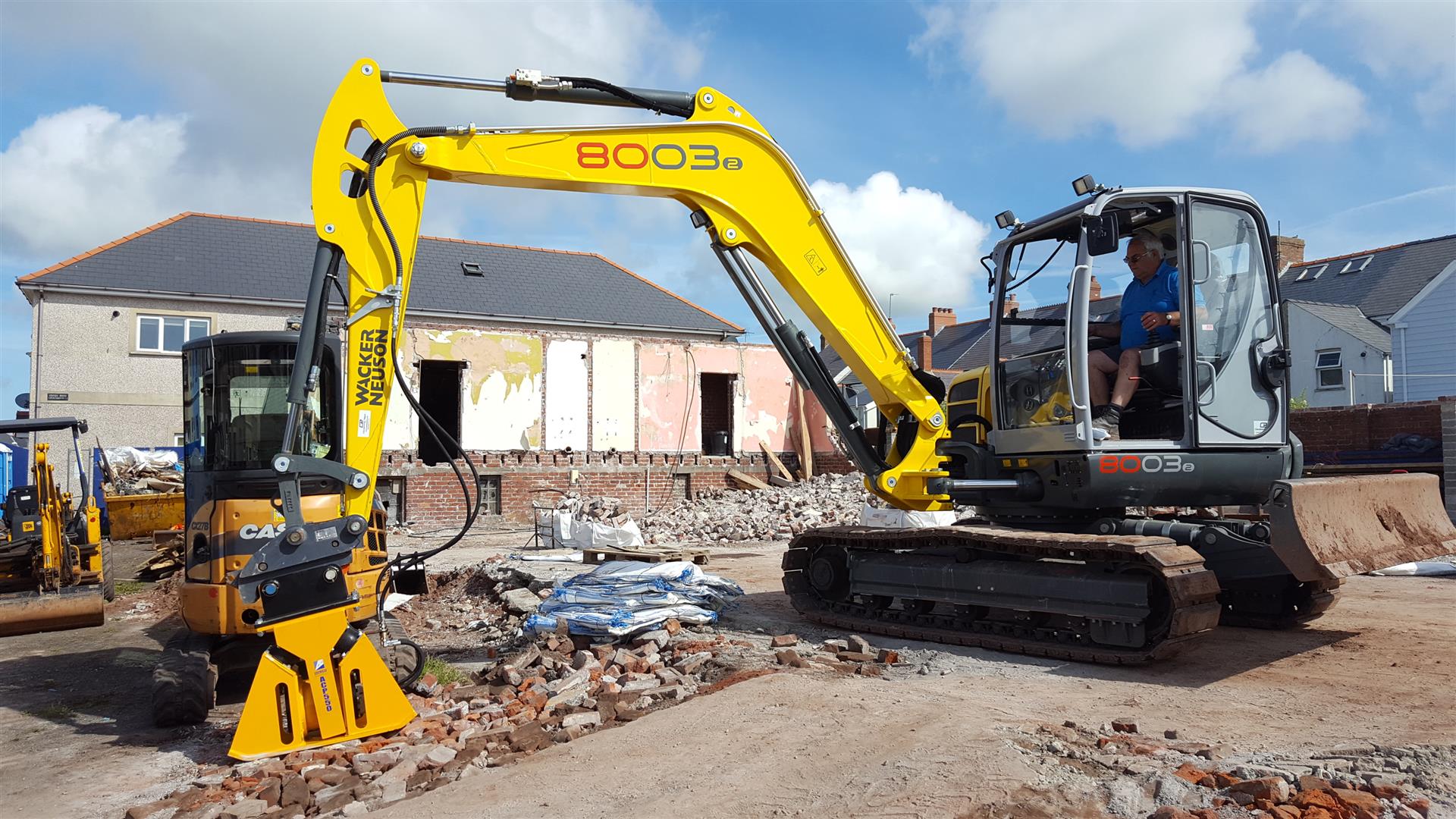

The Arrowhead Rockdrill ACP Range are built using a unique ‘V’ profile design enabling powerful compaction and sheet/post/pile driving while delivering superior vibration protection for the excavator by the use of heavy duty in-line dampening buffers.
Manufactured from the highest quality steels and utilising only the best in US or European manufactured bearings and hydraulic motors the ACP Range are engineered to provide long service life.
Oil Splash Technology ensures the bearings are auto-lubricated with no greasing required so the ACP Range can work longer and provide greater productivity.
The Arrowhead Rockdrill ACP Range ensures maximum return on investment and excellent performance on the jobsite with their quality, reliability and simplicity.
| Specification | unit | ACP 200 | ACP 350 | ACP 550 | ACP 1600 |
|---|---|---|---|---|---|
| Impulse force | Kgf | 909 | 1591 | 2500 | 7500 |
| Frequency (at max flow) |
rpm | 2100 | 2100 | 2100 | 2000 |
| Operating weight | Kg | 135 | 230 | 400 | 780 |
| Base plate size | mm | 200×510 | 290×660 | 445×760 | 710×810 |
| Oil requirements | lpm (Opt 1) | 35-45 | 38-46 | 90-100 | 90-100 |
| lpm (Opt 2) | 50-65 | 50-65 | |||
| Working pressure | bar | 103 | 103 | 103 | 103 |
| Carrier weight | tonnes | 1-3 | 2.5-5 | 5-9 | 8-16 |
