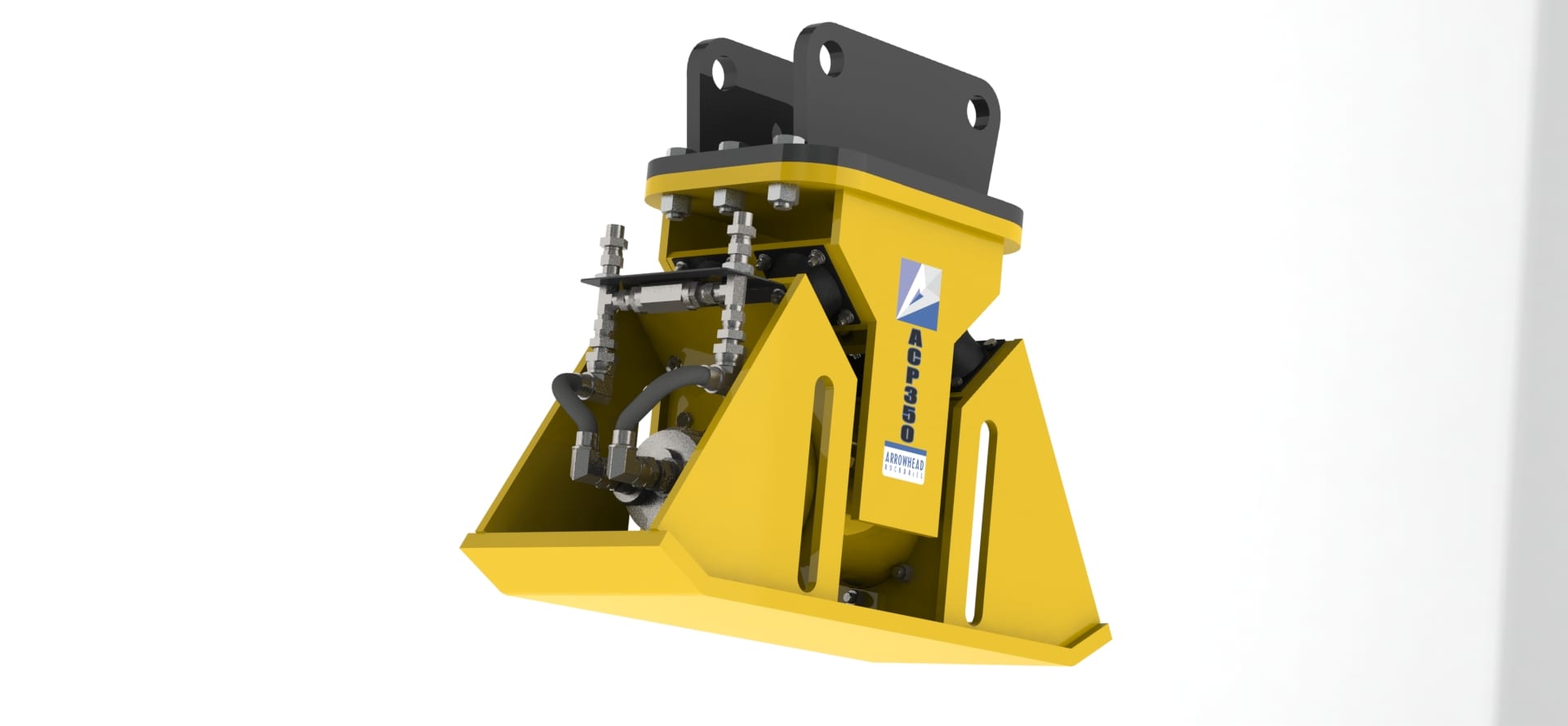

Arrowhead ACP350 Vibratory Compaction plate

£3,640.00 Exc VAT

Machine Make / Model

For correct matching of products, please enter your machine make and model.

The ACP range of Vibratory Compaction plate

Primary uses of the ACP Range

  • Soil/hard-core compaction
  • Backfill trench compaction

The Arrowhead Rockdrill ACP Range are built using a unique ‘V’ profile design enabling powerful compaction and sheet/post/pile driving while delivering superior vibration protection for the excavator by the use of heavy duty in-line dampening buffers.

Manufactured from the highest quality steels and utilising only the best in US or European manufactured bearings and hydraulic motors the ACP Range are engineered to provide long service life.

Oil Splash Technology ensures the bearings are auto-lubricated with no greasing required so the ACP Range can work longer and provide greater productivity.

The Arrowhead Rockdrill ACP Range ensures maximum return on investment and excellent performance on the jobsite with their quality, reliability and simplicity.

Description

Description

Specification unit ACP 200 ACP 350 ACP 550 ACP 1600
Impulse force Kgf 909 1591 2500 7500
Frequency
(at max flow)
rpm 2100 2100 2100 2000
Operating weight Kg 135 230 400 780
Base plate size mm 200×510 290×660 445×760 710×810
Oil requirements lpm (Opt 1) 35-45 38-46 90-100 90-100
lpm (Opt 2) 50-65 50-65
Working pressure bar 103 103 103 103
Carrier weight tonnes 1-3 2.5-5 5-9 8-16
