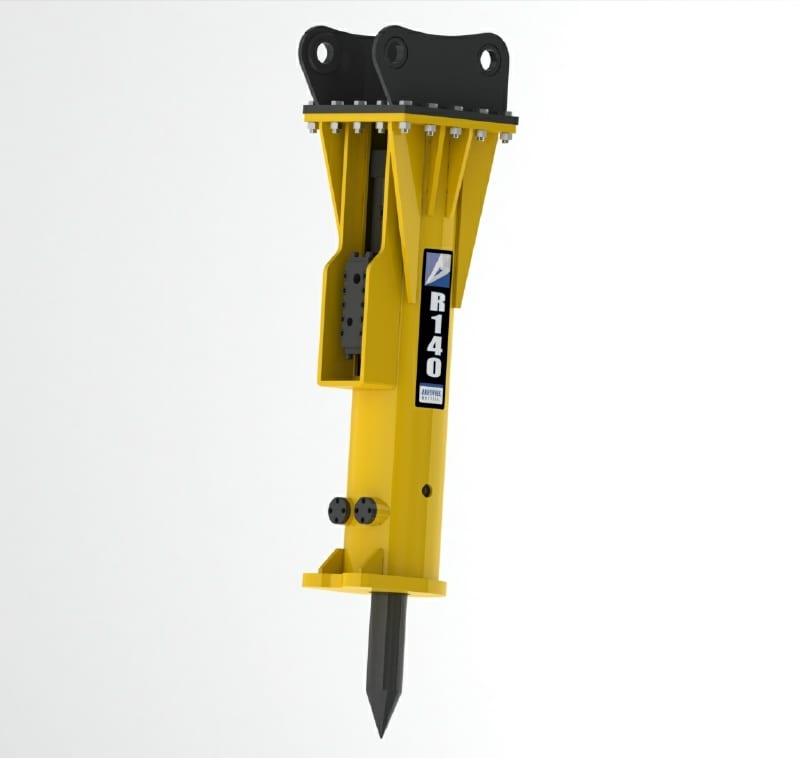

Arrowhead Rockdrill – R140 Hydraulic Hammer (140mm) – Heavy R Range

£25,135.00 Exc VAT

Machine Make / Model

For correct matching of products, please enter your machine make and model.

The R Range Hydraulic Hammer

Arrowhead Rockdrill’s R Range hydraulic hammers bring a new industry leading tie-rodless hammer to the market. Based around a unique design the R Range hammers eliminate the need for tie rods in the hammer assembly increasing the robustness of the hammer while simplifying its construction.

The R Range hammers are a compact and powerful design suitable for a wide variety of applications all with the effective price and industry leading support our customers deserve.

Features of the ‘R’ Range

  • Tie-rodless hammer design
  • Narrow round box provides superior access to surfaces in confined spaces such as trenching work
  • Vibration and sound supressed at standard
  • The hammer can be fully serviced using no specialist tools
  • Powerful gas fired operation using less oil at lower working pressures
  • Excavator friendly
Categories: , Tags: , , , ,
Description

Description

Hammer Specification unit R90 R100 R120 R140
Max energy per blow J 2000 3000 4060 5420
Require flow lpm 90-120 100-140 90-150 150-200
Operating pressure bar 130 130 130 130
Blows per min per min 600-1200 800-1400 400-700 400-700
Guaranteed sound power dB 123 123 125 127
Tool diameter mm 90 100 120 140
Working weight kg 520 660 1210 1580
Carrier weight Tonnes 8-13 13-16 16-21 20-29
