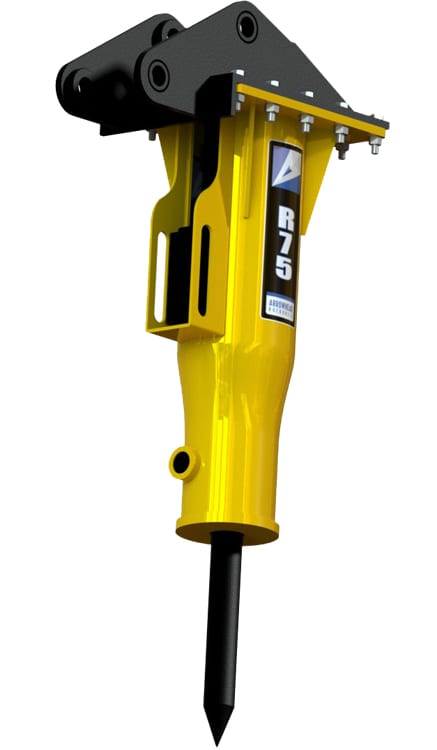

Arrowhead Rockdrill – R75 Hydraulic Hammer (75mm) – Compact R Range

£6,505.00 Exc VAT

Machine Make / Model

For correct matching of products, please enter your machine make and model.

The R Range Hydraulic Hammer

Arrowhead Rockdrill’s R Range hydraulic hammers bring a new industry leading tie-rodless hammer to the market. Based around a unique design the R Range hammers eliminate the need for tie rods in the hammer assembly increasing the robustness of the hammer while simplifying its construction.

The R Range hammers are a compact and powerful design suitable for a wide variety of applications all with the effective price and industry leading support our customers deserve.

Features of the ‘R’ Range

  • Tie-rodless hammer design
  • Narrow round box provides superior access to surfaces in confined spaces such as trenching work
  • Vibration and sound supressed at standard
  • The hammer can be fully serviced using no specialist tools
  • Powerful gas fired operation using less oil at lower working pressures
  • Excavator friendly
Categories: , Tags: , , , ,
Description

Description

Hammer Specification unit R70 R75 R80
Max energy per blow J 1000 1200 1400
Require flow lpm 55-80 70-100 80-110
Operating pressure bar 110 120 120
Blows per min per min 650-1400 650-1400 550-1200
Guaranteed sound power dB 118 121 121
Tool diameter mm 70 75 80
Working weight kg 210 305 375
Carrier weight Tonnes 5.0-7.0 6.5-8.5 7.0-10.0
