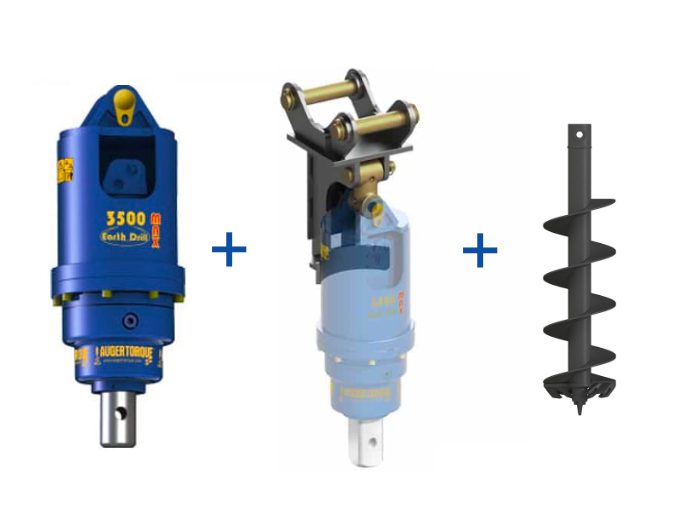

Auger Torque 3500MAX Package Including Double Pin Cradle Hitch and Auger

Auger Torque 3500Max Earth Drill

EARTH DRILLS FOR MINI EXCAVATORS 1-5 TONNES AND SSL LOW FLOW

The Earth Drills X3000 up to X4500’s are the perfect choice for excavators between 2000kg and 5T.

Recommended for Excavators 2T to 5T

Product Specification

PRODUCT RANGE

EARTH DRILLS // MINI EXCAVATORS 2T TO 5T

The Earth Drill 3000-4500’s are the perfect choice for excavators between 2T-5T and just like all our planetary drives in our line up they are over engineered and built to last.

High quality hydraulic motors, output shaft bearings which are 50% larger than our nearest competitors comparable drive and the use of only high grade materials mean that your Earth Drill will have a long, reliable service life.

Standard with the 3000-4500 series and unique to Auger Torque, the Non-Dislodgement Shaft is a single piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers. This is a MUST-HAVE FEATURE for any safety conscious company.

Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.

High quality hoses and couplers are standard with this series of Earth Drills, type and size need to be specified at the time of purchase, rest assured we keep all standards in stock and you will be ready to use your Earth Drill the moment you take delivery.

All Earth Drills are covered by Auger Torque’s industry leading life-time warranty.

Please have a look at the below table for more specifications.

Double Pin Cradle Hitch to suit 3000Max to 4500Max Earth Drill

Augertorque Double Pin Cradle Hitch available for Earth Drills 3000Max TO 4500Max in various Pin diameters (30mm, 32mm, 35mm, 38mm, 40mm, 44mm (1.3 / 4"), 45mm, 50mm, 55mm, 60mm).

The Double Pin Cradle Earth Drill hitch can be supplied in both loose and fixed pin versions to suit standard and quick hitch solutions on most excavators & backhoes. This hitch is suitable for all our drives from the Earth Drill X1500 to the Earth Drill 50,000MAX. The use of a Cradle hitch is recommended by Auger Torque as it will eliminate Auger swing during dirt shake off, will enable you to safely transport your Earth Drill and Auger on site and will also help you in lining up your holes with precision. No mechanical parts or dampers mean that even if your Earth Drill and hitch have a tough life ahead of them you will not have to worry about costly replacements or breakdowns.

Just like all Auger Torque products only the highest grade steel is used in the fabrication of this style hitch. When ordering this hitch please supply your pin diameter, dipper width and distance between pin centres.

The S4 range of augers has been specifically designed for excavators and machines 1T to 5T.

Mini Excavators 1 – 5T, Mini Loaders, Skidsteer Loaders up to 80hp and Truck Cranes up to 9T / Metre
