Auger Torque 3500MAX Package Including Double Pin Cradle Hitch and Auger Original price was: £2,400.00.Current price is: £2,075.00. Exc VAT
Sale

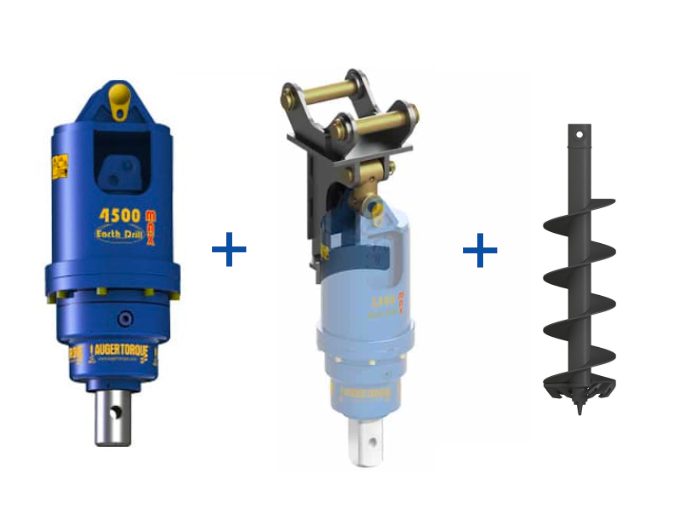

Auger Torque 4500MAX Package Including Double Pin Cradle Hitch and Auger

Original price was: £2,795.00.Current price is: £2,395.00. Exc VAT

Save money with this great Causeway Plant Package Deal.

Auger Torque 4500Max Hydraulic Earth Drill

Auger Torque 3500Max Earth Drill

EARTH DRILLS FOR MINI EXCAVATORS 1-5 TONNES AND SSL LOW FLOW

The Earth Drills X3000 up to X4500’s are the perfect choice for excavators between 2000kg and 5T.

Recommended for Excavators 2T to 5T

Product Specification

MODEL 4500 MAX
Oil Pressure Range 80 - 240 Bar
Torque Range 1500 - 4499 Nm
Oil Flow Range 50 - 95 lpm
Speed Range 43 - 81 rpm
Hub Options 65mm Round
665 mm
Width 244 mm
Weight 75 kg
Hitch Options Single Pin Hitch
Double Pin Hitch
Cradle Hitch
Auger Range S4
Rec. Drilling Diameter Range 100 - 900 mm

PRODUCT RANGE

EARTH DRILLS // MINI EXCAVATORS 2T TO 5T

The Earth Drill 3000-4500’s are the perfect choice for excavators between 2T-5T and just like all our planetary drives in our line up they are over engineered and built to last.

High quality hydraulic motors, output shaft bearings which are 50% larger than our nearest competitors comparable drive and the use of only high grade materials mean that your Earth Drill will have a long, reliable service life.

Standard with the 3000-4500 series and unique to Auger Torque, the Non-Dislodgement Shaft is a single piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers. This is a MUST-HAVE FEATURE for any safety conscious company.

Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.

High quality hoses and couplers are standard with this series of Earth Drills, type and size need to be specified at the time of purchase, rest assured we keep all standards in stock and you will be ready to use your Earth Drill the moment you take delivery.

All Earth Drills are covered by Auger Torque’s industry leading life-time warranty.

Please have a look at the below table for more specifications.

Double Pin Cradle Hitch to suit 3000Max to 4500Max Earth Drill

Double Pin Cradle Hitch to suit 3000Max to 4500Max Earth Drill

Augertorque Double Pin Cradle Hitch available for Earth Drills 3000Max TO 4500Max in various Pin diameters (30mm, 32mm, 35mm, 38mm, 40mm, 44mm (1.3 / 4"), 45mm, 50mm, 55mm, 60mm).

25mm DOUBLE PIN CRADLE HITCH - 3000Max TO 4500Max
30mm DOUBLE PIN CRADLE HITCH - 3000Max TO 4500Max
32mm DOUBLE PIN CRADLE HITCH - 3000Max TO 4500Max
35mm DOUBLE PIN CRADLE HITCH - 3000Max TO 4500Max
40mm DOUBLE PIN CRADLE HITCH - 3000Max TO 4500Max

44mm (1.3/4") DOUBLE PIN CRADLE HITCH - 3000MAX TO 4500MAX
45mm DOUBLE PIN CRADLE HITCH - 3000MAX TO 4500MAX
50mm DOUBLE PIN CRADLE HITCH - 3000MAX TO 4500MAX
55mm DOUBLE PIN CRADLE HITCH - 3000MAX TO 4500MAX
60mm DOUBLE PIN CRADLE HITCH - 3000MAX TO 4500MAX

The Double Pin Cradle Earth Drill hitch can be supplied in both loose and fixed pin versions to suit standard and quick hitch solutions on most excavators & backhoes. This hitch is suitable for all our drives from the Earth Drill X1500 to the Earth Drill 50,000MAX. The use of a Cradle hitch is recommended by Auger Torque as it will eliminate Auger swing during dirt shake off, will enable you to safely transport your Earth Drill and Auger on site and will also help you in lining up your holes with precision. No mechanical parts or dampers mean that even if your Earth Drill and hitch have a tough life ahead of them you will not have to worry about costly replacements or breakdowns.

Just like all Auger Torque products only the highest grade steel is used in the fabrication of this style hitch. When ordering this hitch please supply your pin diameter, dipper width and distance between pin centres.

S4 Auger Tungsten Range: Micro Excavators & machines 1T to 5 Ton (65mm Round Hub)

The S4 range of augers has been specifically designed for excavators and machines 1T to 5T.

Mini Excavators 1 – 5T, Mini Loaders, Skidsteer Loaders up to 80hp and Truck Cranes up to 9T / Metre

Description

The S4 Range of Augers has been specifically designed for Mini Loaders, Skid Steer Loaders & Excavators up to 5T. S4 Range Augers are available with a number of wearpart combinations, catering from soft grounds all the way to mixed rocky grounds and even permafrost.

All Auger Torque Augers are built from high grade steel and incorporate many features that will allow you to work more efficiently and will make your job easier. Shallow pitch flights ensure they will cut with maximum efficiency and, most importantly keep the spoil on the flights when removed from the hole.

Heavy duty tubes, constant spiral cut as well Auger Torques unique Shock Lockâ„¢ Tooth Locking System, which will guarantee that you will never lose your auger teeth when reversing your auger, have given Auger Torque Augers their industry leading reputation. The standard hub for the S4 range is 65mm round, however we are able to supply most hub options on the market.

Specification

Mini Excavators 1 – 5T, Mini Loaders, Skidsteer Loaders up to 80hp and Truck Cranes up to 9T / Metre

Overall length: 1.2m

Fully flighted: 525mm – 950mm

Sizes: 100mm – 900mm

Earth drills: 100mm-450mm:  X1500(excld.450mm)/ X2000/ ML2000/ X2500/ ML2500/ 3000MAX/ 3000TC/ 3500MAX/ 4500MAX

Earth drills: 500mm: X2500/ ML2500

Earth drills: 600mm: 3000MAX/ 3000TC

Earth drills: 750mm: 3500MAX/ 4500MAX

Earth drills: 900mm: 4500MAX

Overall Length given includes the auger fitted with wear parts.

No Extension

Save money with this great Causeway Plant Package Deal.

Category:
Additional information

Additional information

Double Pin Cradle Hitch to suit 3000Max to 4500Max Earth Drill

Pin Size

30mm, 32mm, 35mm, 38mm, 40mm, 44mm (1.3 / 4"), 45mm, 50mm, 55mm, 60mm

S4 Auger Tungsten Range: Micro Excavators & machines 1T to 5 Ton (65mm Round Hub)

Auger Width

100mm, 150mm, 200mm, 225mm, 250mm, 300mm, 350mm, 400mm, 450mm

S4 Extension

No Extension
